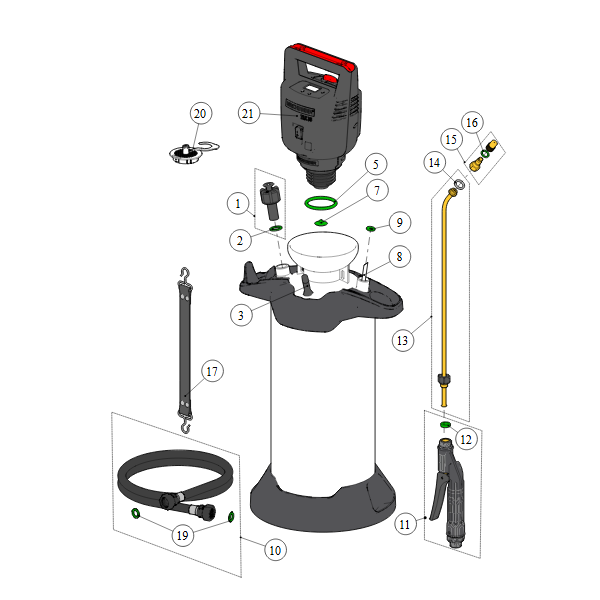

Birchmeier e-Profi 7 spare parts (without battery and charger)
| Gasket set: | 10399003-SB | |
| 2 | Gasket 21 x 15.4 x 2 mm | |
| 5 | O-ring 50.16 x 5.34 mm | |
| 7 | Pump gasket Ø24 mm | |
| 9 | Gasket 15 x 5.5 x 2 mm | |
| 12 | Gasket 12.2 x 7 x 3 mm | |
| 14 | Gasket 17 x 12.7 x 2 mm | |
| 16 | O-ring 7.66 x 1.78 mm | |
| Gasket set for trigger | 11664910 | |
| Spare parts: | ||
| 1 | Safety and pressure relief valve (4 bar) | 11617902-SB |
| 3 | Compressed air valve | 50137531 |
| 8 | Suction tube 43.5 cm | 10450502 |
| 10 | Hose (1.5 m, G1/2"-G1/2", oil resistant) | 10834210-SB |
| 11 | Trigger G1/2" (with Viton gaskets) | 10966105-SB |
| 12 | Gasket 12.7 x 7 x 3 mm | 11642404 |
| 13 | Spray tube 50 cm, curved | 11370704 |
| 14 | Gasket 17 x 12.7 x 2 mm | 11642403 |
| 15 | Adjustable nozzle G1/4"i, 1.3 mm, brass | 28502598-SB |
| 17 | Carrying belt | 10453601 |
| 20 | Filter | 11943901 |
| 21 | TLK 35 battery air compressor | 12185901 |
