| Repair set: |
12008301 |
| 7 |
Connector angled 90°, Ø10 mm |
|
| 9 |
O-ring 40.94 x 2.62 mm |
|
| 11 |
Gasket 24 x 19 x 2 mm |
|
|
Hose clamp Ø17.5 mm |
|
|
Hose clamp Ø18.5 mm |
|
| |
|
|
| Gasket set: |
12060601 |
| 10 |
Gasket 28 x 21 x 1.5 mm |
|
| 12 |
Gasket 15 x 7.5 x 2 mm |
|
| 17 |
Gasket 18.5 x 12 x 2 mm |
|
| 20 |
Filter |
|
| 21 |
Gasket 24 x 16.2 x 2 mm |
|
| 22 |
Gasket 24 x 16.2 x 2 mm |
|
| 23 |
Valve rod |
|
| 23 |
Shaped packing 11.8 x 4 x 4 mm |
|
| 23 |
Rim |
|
| 24 |
Gland packing |
|
| 26 |
Gasket 12.2 x 7 x 3 mm |
|
| 27 |
Gasket 17 x 12.7 x 2 mm |
|
| 35 |
Gasket 18.5 x 12 x 2 mm |
|
| |
|
|
| Hose set: |
12024701 |
| a |
Hose Ø10 x 15.8 mm PVC-P, transparent, 30 cm |
|
| b |
Hose Ø10 x 15.8 mm PVC-P, transparent, 35 cm |
|
| c |
Hose Ø10 x 17 mm, PVC, black, 48 cm |
|
| d |
Hose Ø10 x 17 mm, PVC, black, 50 cm |
|
| e |
Hose nipple Ø10 mm (2 pcs) |
|
| f |
Hose Ø6 x 12 mm, oil-resistant, 30 cm |
|
| g |
Hose nipple Ø6 mm |
|
|
Hose clamp Ø14.5 mm (2 pcs) |
|
|
Hose clamp Ø17.5 mm (2 pcs) |
|
|
Hose clamp Ø18.5 mm (2 pcs) |
|
|
Hose clamp Ø19.5 mm (4 pcs) |
|
| |
|
|

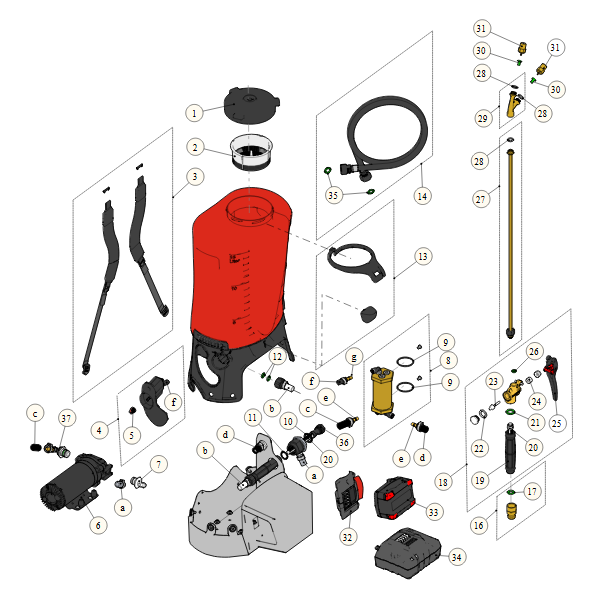

| Spare parts: |
|
| 1 |
Lid Ø137 mm |
10397202-SB |
| 2 |
Filter |
77009699-SB |
| 3 |
Carrying belt (pair) |
11923401 |
| 4 |
Electronic unit |
12076301 |
| 5 |
Potentiometer knob |
11922701 |
| 6 |
Pump and motor 12 V / 10 bar |
12069701 |
| 8 |
Air vessel |
12008001 |
| 13 |
Spray tube holder |
11934001 |
| 14 |
Hose 1.3 m, G1/2"-G1/2", oil resistant |
11956301 |
| 16 |
Swivel joint, G1/2" |
10397901-SB |
| 18 |
Trigger brass LB, G1/2", 10 bar |
12047501-SB |
| 19 |
Plastic handle G1/2" |
10392201-SB |
| 25 |
Lever for trigger |
12046501 |
| 26 |
Gasket 12.2 x 7 x 3 mm |
11642404 |
| 27 |
Spray tube 60 cm straight, brass |
12007301 |
| 28 |
Gasket 17 x 12.7 x 2 mm |
11642403 |
| 29 |
Double nozzle holder SW, thread G1/4" |
12006401 |
| 30 |
Anti-drop-valve with adapter |
12061201 |
| 31 |
Duro mist nozzle 1.3 mm, brass |
28502323-SB |
| 32 |
Fixing for battery plate |
12075701 |
| 33 |
Battery pack 18 V Li-Power / 5.2 Ah |
12072501 |
| 34 |
Quick charger ASC 55, 220-240 V, EU - plug type C |
12070101 |
| 35 |
Gasket 18.5 x 12 x 2 mm |
12177701 |
| 36 |
Filter holder |
12019801 |
| 37 |
Connector angled Ø10 mm |
12177201 |
